How to Make a Vinyl Travel Case with a Clear Window – Complete Step-by-Step Guide

Introduction

In this tutorial, ZMAKER Ava from Peachy Pod Studios demonstrates how to sew a durable vinyl travel case featuring a transparent viewing window. Using solid vinyl and 16-gauge clear vinyl from Big Z Fabric, this beginner-friendly project creates a versatile zippered pouch that's perfect for organizing travel essentials, stationery, toiletries, or sewing supplies.

The tutorial covers the entire construction process, including creating the clear window, installing the zipper, sewing the pouch, boxing the corners for depth, and adding a convenient hanging loop.

Materials Needed

Gather the following supplies before beginning:

Fabrics

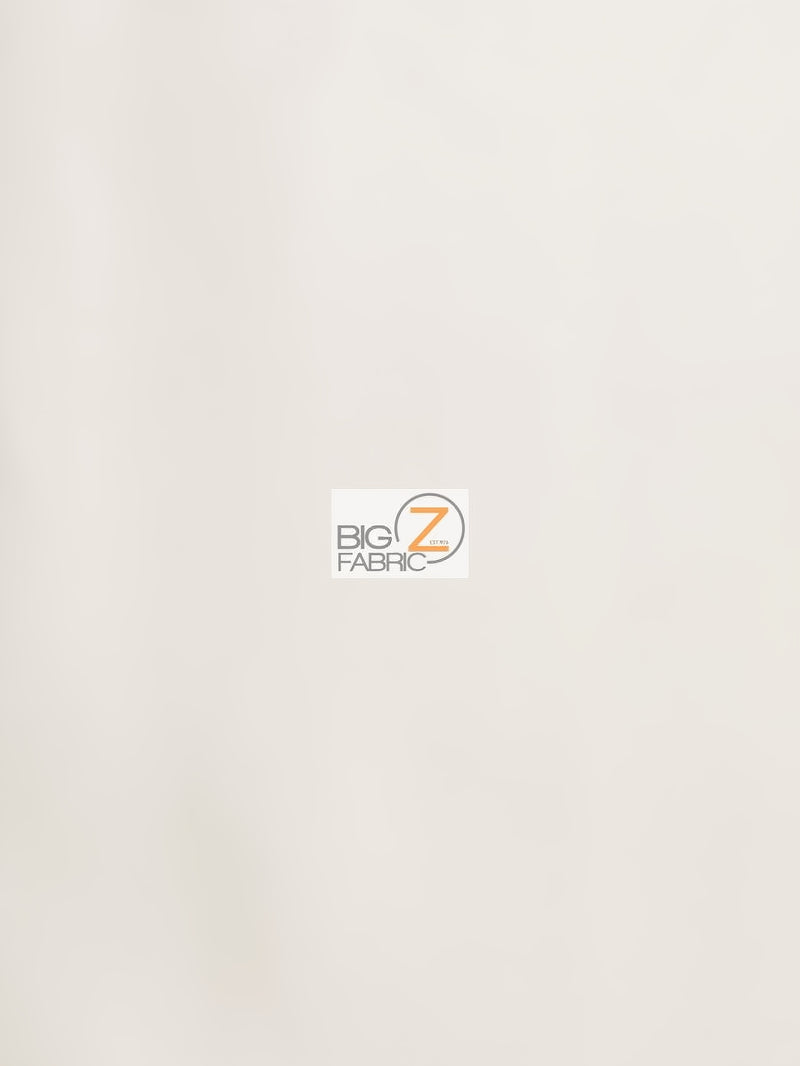

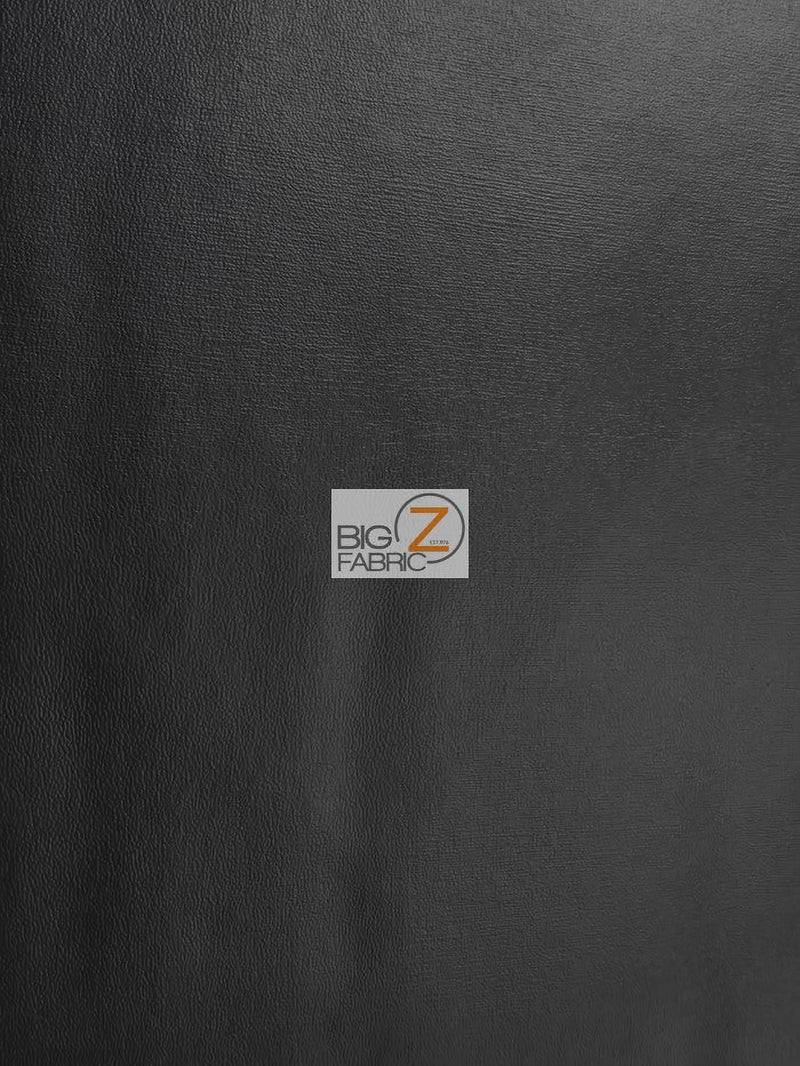

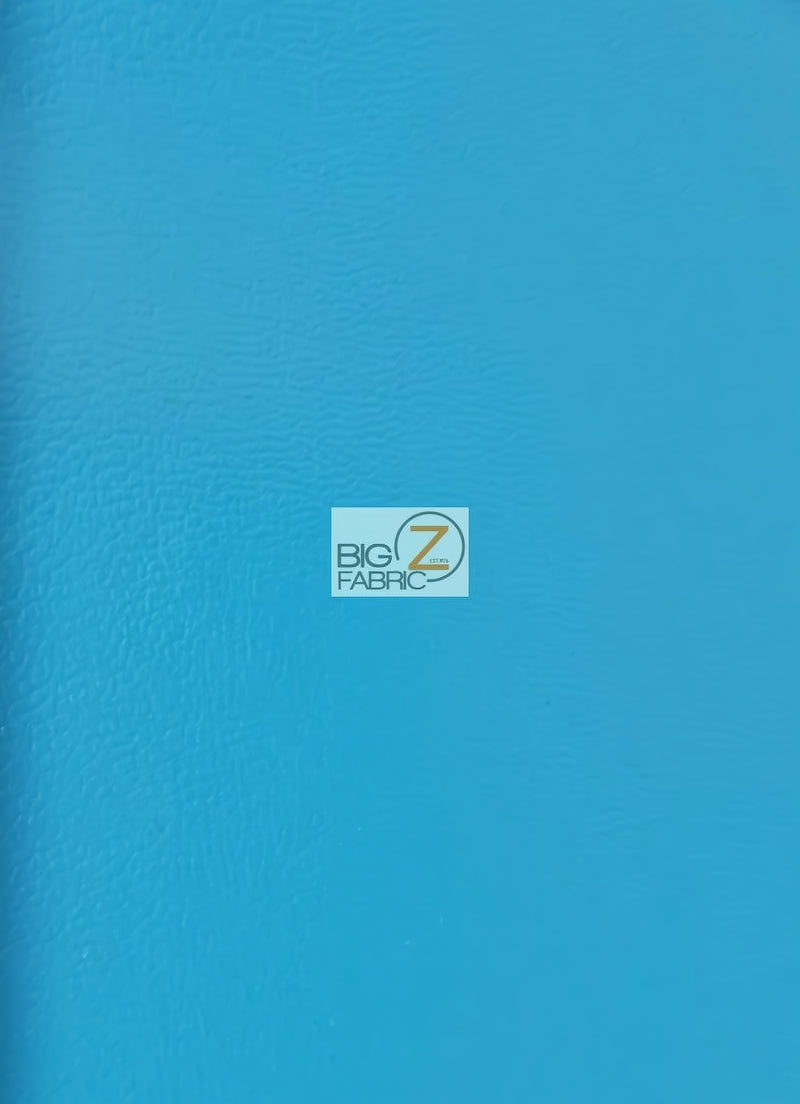

• 11" × 12" piece of solid vinyl (Big Z Fabric)

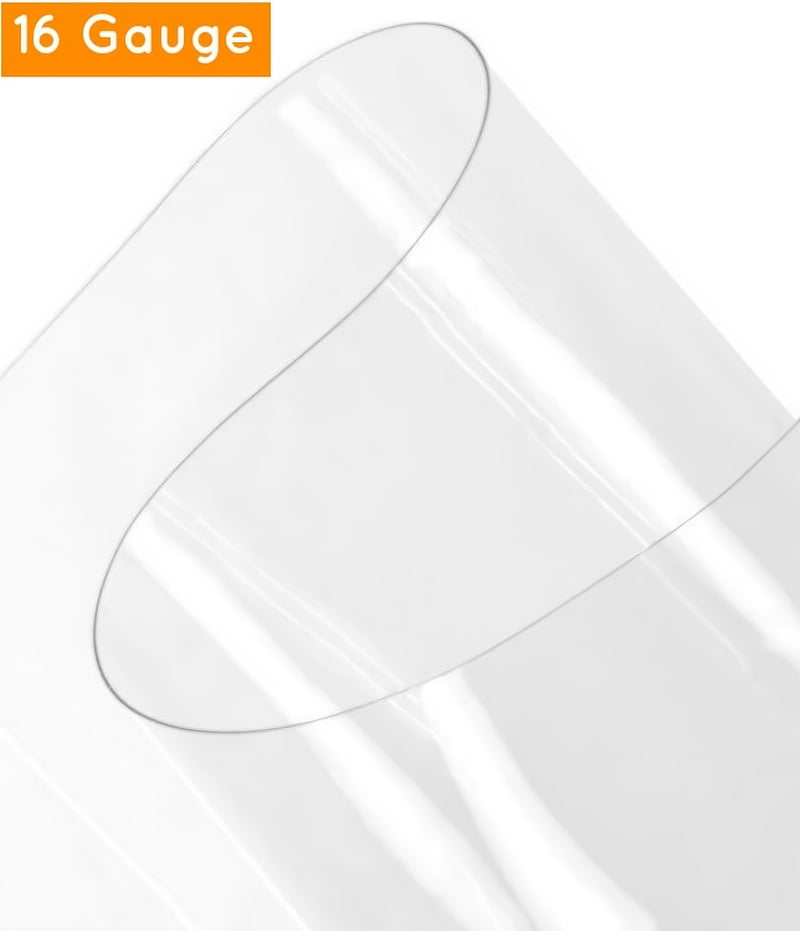

• 11" × 5" piece of 16-gauge clear vinyl (Big Z Fabric)

Notions & Tools

• Printed pattern
• Zipper (at least 11 inches long)
• Fabric scissors
• Pen or fabric marker
• Ruler
• Bobby pins (or Wonder Clips)
• Sewing machine
• Matching thread

Note: Bobby pins are recommended instead of traditional sewing pins because they hold the vinyl securely without puncturing or permanently marking the material.

Step 1: Prepare the Window Opening

Lay the solid vinyl flat with the right side facing up.

Position the pattern on top of the vinyl and trace the window opening using a pen or fabric marker.

Once the outline has been transferred, carefully cut along the traced line with fabric scissors to create the window opening.

Take your time to achieve smooth, even edges, as this opening will remain visible in the finished project.

Step 2: Attach the Clear Vinyl

Place the clear vinyl behind the opening so it completely covers the cut-out window.

Align the edges carefully and secure both layers using bobby pins.

Because vinyl does not self-heal from punctures, avoid using straight pins whenever possible.

Step 3: Sew the Window

Set the sewing machine to a stitch length of approximately 3 mm.

Sew around the perimeter of the window opening, attaching the clear vinyl to the back of the solid vinyl.

Sew close to the cut edge while maintaining an even seam allowance.

Backstitch at both the beginning and end of the seam for durability.

After sewing, trim away any excess clear vinyl from the back if desired.

The finished window should sit flat and securely inside the opening.

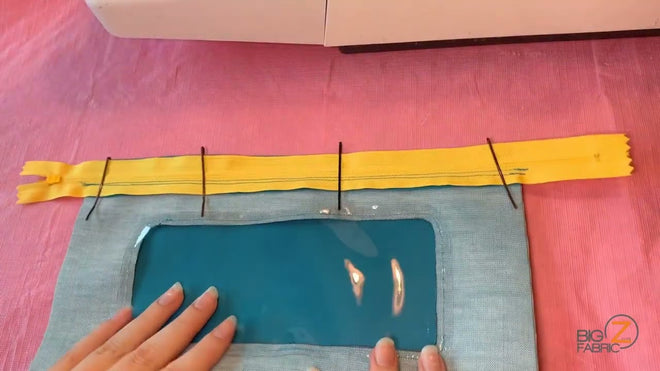

Step 4: Attach the First Side of the Zipper

Place the zipper on the table with the zipper pull facing upward.

Align the top edge of the zipper tape with the top edge of the vinyl panel.

Secure the layers using bobby pins.

Sew close to the zipper teeth, attaching the zipper to the vinyl.

A zipper foot may be used to make stitching close to the teeth easier, although a standard presser foot also works.

Backstitch at both ends of the seam.

Step 5: Topstitch the Zipper

Fold the zipper away from the vinyl so the seam lies flat.

Secure the fold with bobby pins.

Topstitch close to the folded edge.

This keeps the seam flat, improves the appearance of the pouch, and helps prevent the vinyl from catching in the zipper during use.

Step 6: Attach the Second Side of the Zipper

Fold the vinyl piece in half with right sides together.

Align the free edge of the zipper with the opposite short edge of the vinyl.

Secure with bobby pins.

Sew close to the zipper, just as before.

After stitching, carefully unzip the zipper from inside the project.

Fold the vinyl away from the zipper and topstitch the second side so both zipper seams are neatly finished.

Step 7: Sew the Side Seams

Close the zipper completely and position the zipper pull at the very top of the pouch.

Align both side edges and secure them with bobby pins.

Sew each side seam close to the edge, stitching directly across the zipper.

Remember to backstitch at the beginning and end of each seam.

Before sewing the second side, move the zipper pull to the middle of the pouch.

This step is essential because it prevents the zipper pull from becoming trapped after the seams are sewn.

Step 8: Create the Hanging Loop

From the remaining solid vinyl, cut a strip measuring:

• 1½ inches wide
• 6 inches long

Fold the strip into thirds lengthwise.

Secure the folds with bobby pins.

Sew close to one long edge, making sure to stitch through all three layers.

Flip the strip over and repeat on the opposite side.

The result is a sturdy reinforced strap that will serve as the hanging loop.

Step 9: Box the Corners

To give the pouch depth, box each corner.

On every corner:

• Measure ¾ inch from the side seam.
• Measure ¾ inch from the bottom seam.
• Draw a square measuring ¾" × ¾".

Repeat for all four corners.

Cut out each marked square carefully.

The zipper corners will be thicker, so cut slowly through those layers.

Step 10: Sew the Bottom Boxed Corners

Open one of the bottom corner cutouts.

Bring the cut edges together to form a straight seam.

Secure with bobby pins.

Sew close to the edge and backstitch at both ends.

Repeat for the second bottom corner.

These seams create the flat base of the travel case.

Step 11: Sew the Zipper-End Corner

Open one of the boxed corners at the zipper end.

Align the zipper teeth so both sides meet evenly.

Secure the opening with bobby pins.

Sew the seam closed just as with the previous boxed corners.

Step 12: Install the Hanging Loop

Fold the completed hanging loop in half.

Insert the folded end into the final boxed corner at the zipper end.

Adjust the amount of loop extending into the pouch based on the desired finished size.

Secure everything with bobby pins.

Sew the final corner closed, stitching through the hanging loop and reinforcing the seam with backstitching.

This permanently anchors the loop to the case.

Step 13: Turn the Case Right Side Out

Open the zipper from inside the pouch.

Carefully turn the entire project right side out.

Push each boxed corner outward until it forms a crisp square shape.

Smooth the seams with your fingers.

Trim any excess material extending beyond the hanging loop if necessary.

The travel case is now complete.

Finished Uses

The completed travel case is a versatile organizer suitable for carrying a variety of everyday essentials, including:

• Pens and pencils
• Toothbrushes and toothpaste
• Toiletries
• Makeup items
• Travel accessories
• Mini sewing kits
• Craft supplies
• Small electronics and charging cables

The clear vinyl window makes it easy to identify the contents without opening the pouch, making it especially useful for travel and organization.

Tips from the Instructor

• Use bobby pins instead of straight pins to avoid leaving permanent holes in vinyl.
• A stitch length of approximately 3 mm works well for sewing vinyl.
• Topstitch each zipper seam to keep the vinyl flat and improve durability.
• Always move the zipper pull into the center of the project before sewing the final side seam.
• Cut boxed corners accurately to ensure the pouch stands properly.
• Sew slowly through thicker layers around the zipper.
• Backstitch every seam for added strength.
• Take extra care when trimming around the clear window to achieve a clean, professional finish.

Final Result

Following these steps produces a durable vinyl travel case with a transparent viewing window, secure zipper closure, reinforced hanging loop, and boxed corners that provide extra storage space. The combination of solid and clear vinyl creates a practical organizer that is both functional and easy to clean, making it ideal for travel, everyday storage, or organizing craft and sewing supplies.
